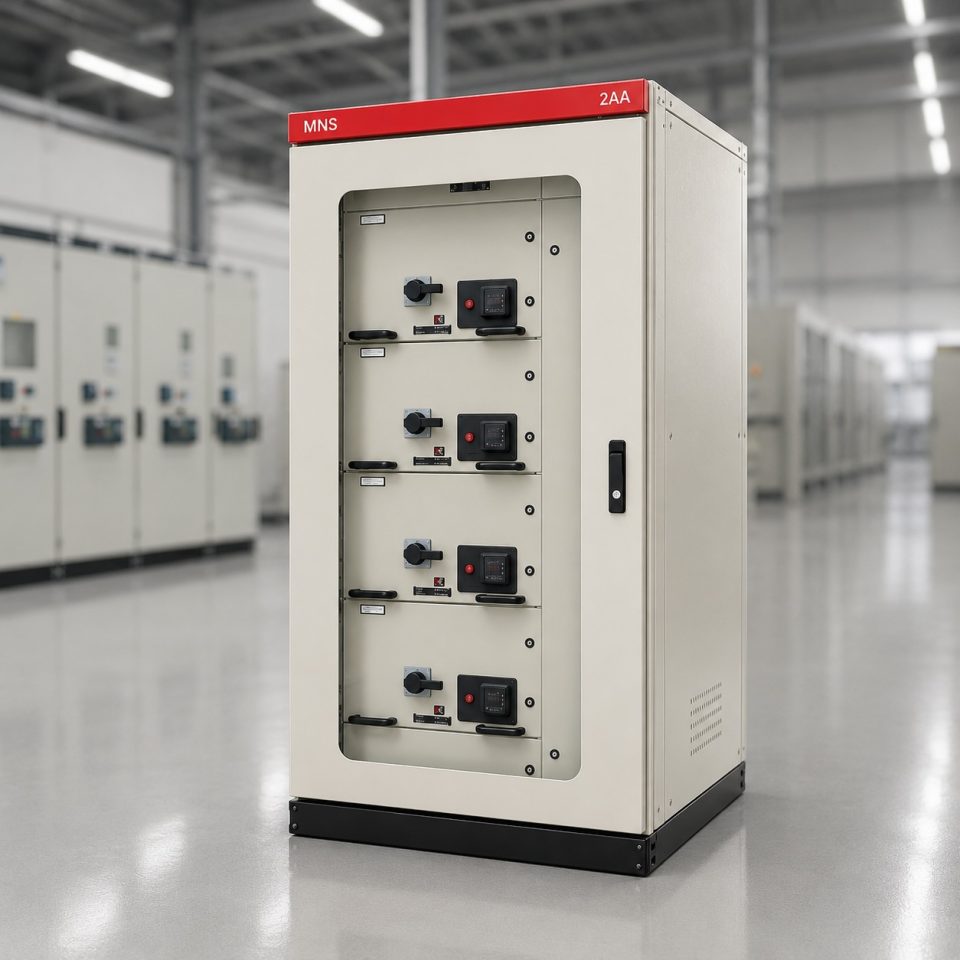

MNS Low Voltage Withdrawable Switchgear
Model: MNS
Withdrawable low voltage switchgear for power distribution, motor control and protection, main circuit 380/660V, up to 5000A.
- Withdrawable structure
- Main voltage 380/660V
- Rated current up to 5000A
- IP3X
- Flexible maintenance
Overview
The MNS low voltage withdrawable switchgear is designed for low voltage power distribution, motor control and electrical protection. The withdrawable structure enables flexible configuration, convenient maintenance and reliable operation in industrial power distribution environments, plants, distribution rooms and commercial buildings.
Technical Specifications
Electrical
| Main circuit voltage | 380, 660 V |
|---|---|
| Auxiliary circuit voltage | AC220, AC380, DC110, DC220 V |
| Rated insulation voltage | 400, 690 V |
| Rated impulse withstand | 6, 8 kV |
| Rated working current (horizontal) | ≤5000 (single) / ≤3600 (double) A |
| Short-time withstand | 50-100 kA/1s |
Warranty
Standard manufacturer warranty.
OEM & ODM
- Busbar configuration
- Module layout
Packaging & Shipping
Interested in this product?
Send us your requirements and get a quotation with lead time and OEM options.
Send Inquiry
