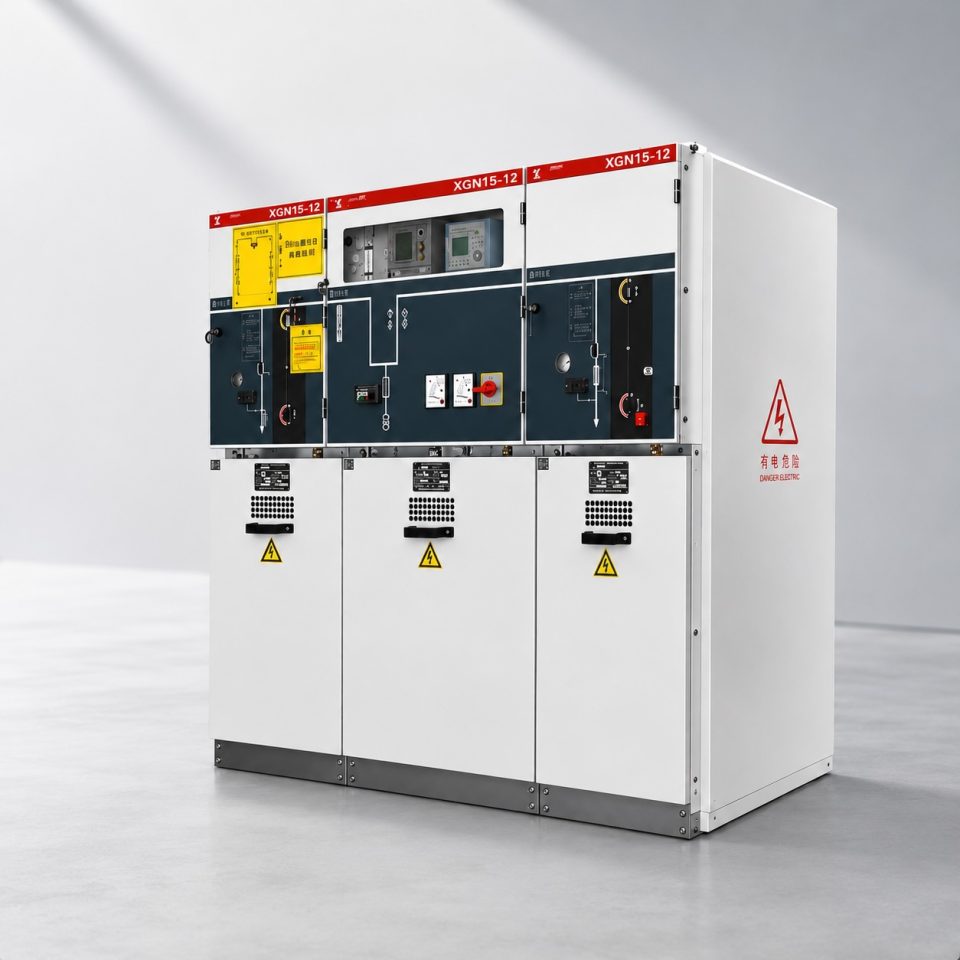

XGN15 / HXGN-12 High Voltage Ring Main Unit (12kV)
Model: XGN15 / HXGN-12
12kV medium-voltage ring main unit for ring network power supply, load switching and protection, IP3X, 1250A main busbar.
- 12kV medium voltage design
- Main busbar 1250A
- Rated short-time withstand 25kA
- IP3X protection
- Compact cabinet
Overview
The XGN15 / HXGN-12 high voltage ring main unit is designed for medium voltage power distribution systems, used for 12kV ring network power supply, load switching, protection and distribution control. The compact cabinet suits power distribution rooms, industrial facilities and infrastructure power supply.
Technical Specifications
Electrical
| Rated voltage | 12 kV |
|---|---|
| 1min power frequency withstand | 42 kV |
| Lightning impulse withstand | 75 kV |
| Rated frequency | 50 Hz |
| Main busbar current | 1250 A |
| Branch busbar current | 630 A |
| Short-time withstand | 25 kA |
| Peak withstand | 63 kA |
General
| Protection level | IP3X |
|---|---|
| Load switch mechanical life | 5000 times |
Warranty
Standard manufacturer warranty.
